Winch Lines & Mooring Tails
Purpose-built winch lines and mooring tails: round, jacketed constructions that run cleanly over winches and capstans, and elastic tails that protect primary mooring lines under OCIMF MEG4 line management.
Representative properties across the WIN® series and mooring tails.
| Constructions | 6-strand mono · 12-strand + jacket |
| Tail constructions | 8 / 12 / 24-strand |
| Fibres | PA · Polyolefin · HT PES |
| Wet/dry strength | 90–100% |
| Compliance | ISO 2307 · OCIMF MEG4 |

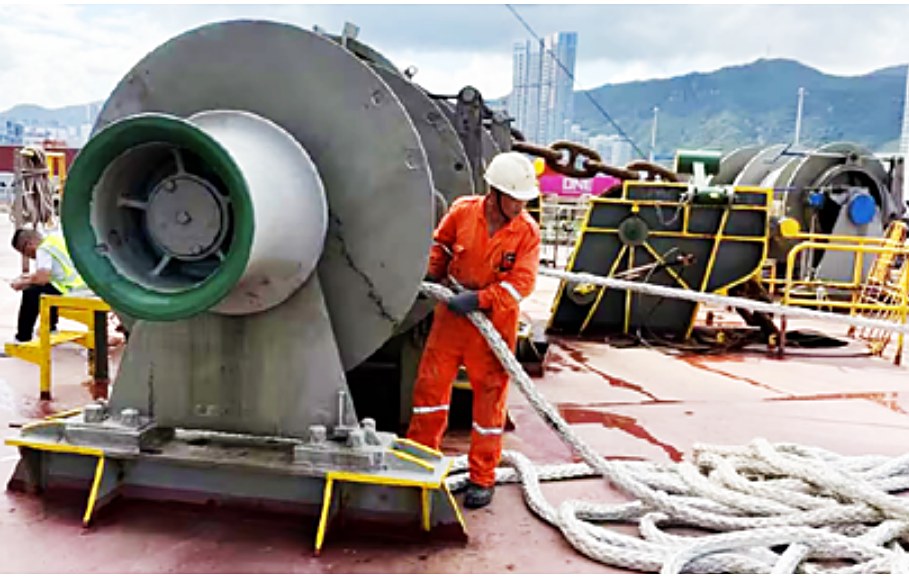

6-strand construction keeps the rope round; polyamide monofilament combined with polyamide multifilament ensures excellent abrasion and UV resistance. Round and stiff construction runs easily over a winch — much lighter and easier to handle than the steel rope it replaces.
| Construction | 6-strand |
| Fibre | PA monofilament + multifilament |
| Specific gravity | 1.14 |
| Melting point | 215 °C |
| Breaking elongation | 15–28% |
WIN-MONO® — by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | MBL ton | MBL kN | LDBF ton | LDBF kN |
|---|---|---|---|---|---|---|---|---|
| 40 | 1-5/8 | 5 | 105.0 | 231.0 | 31.0 | 304 | 27.9 | 273 |
| 44 | 1-3/4 | 5-1/2 | 124.0 | 272.8 | 42.0 | 412 | 37.8 | 370 |
| 48 | 2 | 6 | 148.0 | 325.6 | 50.0 | 490 | 45.0 | 441 |
| 52 | 2-1/8 | 6-1/2 | 163.0 | 358.6 | 54.1 | 530 | 48.7 | 477 |
| 56 | 2-1/4 | 7 | 200.0 | 440.0 | 66.5 | 652 | 59.9 | 587 |
| 60 | 2-1/2 | 7-1/2 | 217.0 | 477.4 | 70.0 | 686 | 63.0 | 617 |
| 64 | 2-5/8 | 8 | 246.0 | 541.2 | 81.0 | 794 | 72.9 | 714 |
| 68 | 2-3/4 | 8-1/2 | 281.0 | 618.2 | 94.2 | 923 | 84.8 | 831 |
| 72 | 3 | 9 | 328.0 | 721.6 | 106.5 | 1044 | 95.9 | 939 |
| 78 | 3-1/13 | 9-3/4 | 370.0 | 814.0 | 120.2 | 1178 | 108.2 | 1060 |
| 84 | 3-1/2 | 10-1/2 | 427.0 | 939.4 | 140.4 | 1376 | 126.4 | 1238 |
| 90 | 3-9/16 | 11-1/4 | 506.0 | 1113.2 | 165.2 | 1619 | 148.7 | 1457 |
| 96 | 4 | 12 | 587.0 | 1291.4 | 190.4 | 1866 | 171.4 | 1679 |
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.

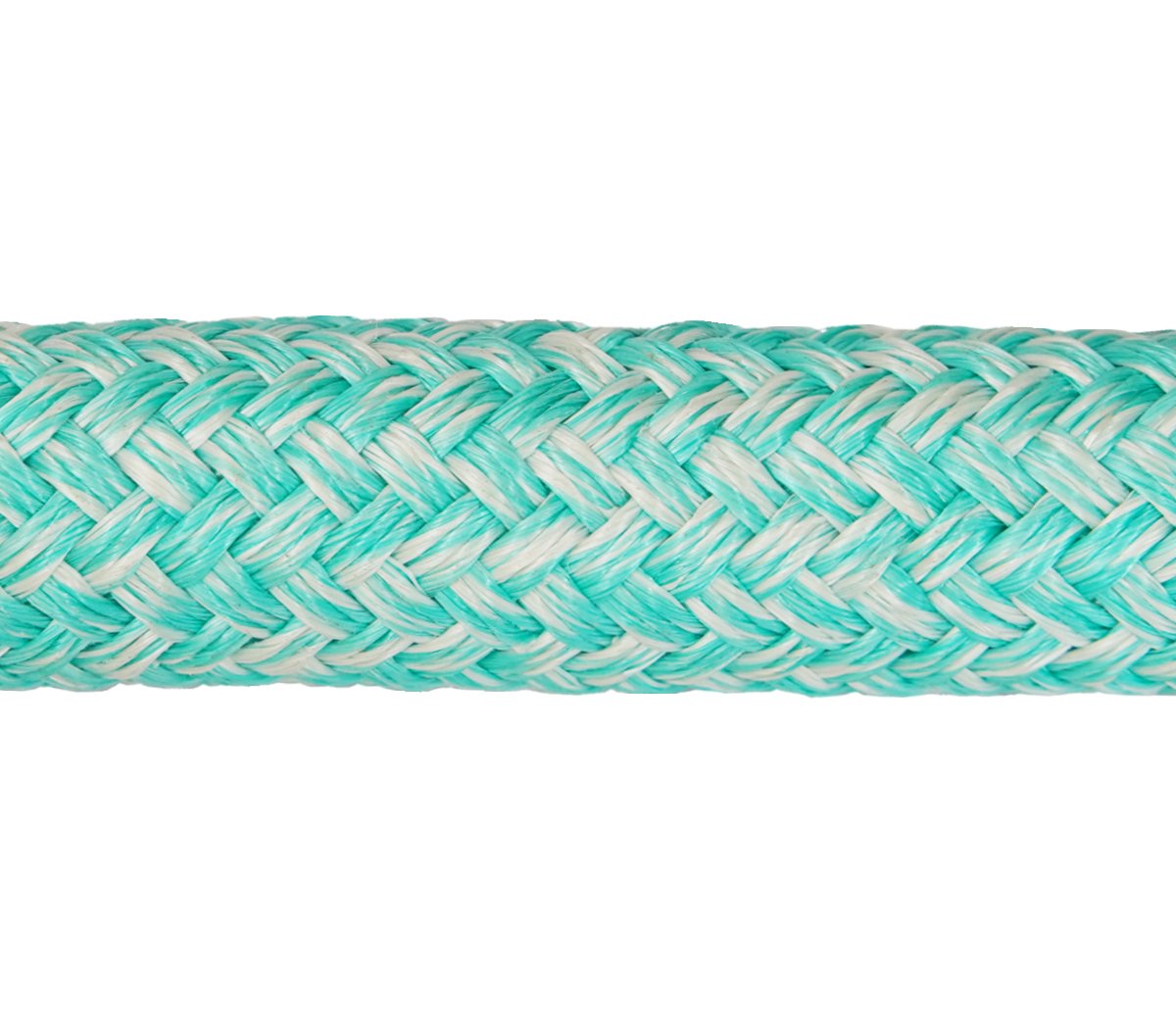

Engineered for unparalleled strength: a 12-strand polyolefin load-bearing core covered by 32-strand braided HT polyester. The protective jacket offers very good abrasion resistance and gripping properties while the core ensures maximum strength.
| Core | Polyolefin 12-strand |
| Jacket | 32-strand HT Polyester braid |
| Abrasion resistance | Very good |
| Water absorption | 0% |
WIN-PES® — by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | MBL ton | MBL kN | LDBF ton | LDBF kN |
|---|---|---|---|---|---|---|---|---|
| 48 | 2 | 6 | 136.1 | 299.4 | 46.7 | 458 | 42.0 | 412 |
| 52 | 2-1/8 | 6-1/2 | 157.5 | 346.5 | 56.5 | 554 | 50.9 | 498 |
| 56 | 2-1/4 | 7 | 186.4 | 410.1 | 65.7 | 644 | 59.1 | 579 |
| 60 | 2-1/2 | 7-1/2 | 209.5 | 460.9 | 76.6 | 751 | 68.9 | 676 |
| 64 | 2-5/8 | 8 | 236.4 | 520.1 | 89.1 | 873 | 80.2 | 786 |
| 68 | 2-3/4 | 8-1/2 | 265.8 | 584.8 | 97.1 | 952 | 87.4 | 856 |
| 72 | 3 | 9 | 298.1 | 655.8 | 108.8 | 1066 | 97.9 | 960 |
| 76 | 3-1/8 | 9-1/2 | 332.5 | 731.5 | 121.7 | 1193 | 109.5 | 1073 |
| 80 | 3-1/4 | 10 | 374.7 | 824.3 | 134.4 | 1317 | 121.0 | 1185 |
| 84 | 3-1/2 | 10-1/2 | 414.3 | 911.5 | 145.8 | 1429 | 131.2 | 1286 |
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.
Mixed high-abrasion-resistance fibre braid over a 12-strand load-bearing core — dual-layer construction provides exceptional strength and durability, ensures minimal stretch and delivers reliable, consistent performance when you need it most.
| Core | Polyolefin 12-strand |
| Jacket | Mixed-fibre braid |
| Stretch | Minimal |
| Water absorption | 0% |
WIN-MIX® — by diameter
| Dia mm | Dia inch | Circ inch | kg/100m | kg/220m | MBL ton | MBL kN | LDBF ton | LDBF kN |
|---|---|---|---|---|---|---|---|---|
| 48 | 2 | 6 | 127.0 | 279.4 | 45.4 | 445 | 40.9 | 400 |
| 52 | 2-1/8 | 6-1/2 | 150.0 | 330.0 | 56.9 | 558 | 51.2 | 502 |
| 56 | 2-1/4 | 7 | 173.0 | 380.6 | 66.3 | 650 | 59.7 | 585 |
| 60 | 2-1/2 | 7-1/2 | 199.0 | 437.8 | 78.2 | 766 | 70.4 | 690 |
| 64 | 2-5/8 | 8 | 227.0 | 499.4 | 92.3 | 905 | 83.1 | 814 |
| 68 | 2-3/4 | 8-1/2 | 256.0 | 563.2 | 99.3 | 973 | 89.4 | 876 |
| 72 | 3 | 9 | 287.0 | 631.4 | 111.6 | 1094 | 100.4 | 984 |
| 76 | 3-1/8 | 9-1/2 | 320.5 | 705.1 | 128.4 | 1258 | 115.6 | 1132 |
| 80 | 3-1/4 | 10 | 354.0 | 778.8 | 138.7 | 1359 | 124.8 | 1223 |
| 84 | 3-1/2 | 10-1/2 | 391.0 | 860.2 | 147.6 | 1446 | 132.8 | 1302 |
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.
Mooring tails provide good elasticity and sudden shock absorption when windy weather or big waves come — a necessary protection for the primary mooring line. Easy to splice, UV-resistant, rot-proof with high abrasion resistance.
| Construction | 8 / 12 / 24-strand |
| Versions | DURA TAIL (PA/PES) · TOUGH TAIL (mixed fibre) |
| Feature | Shock absorption for primary lines |
| Compliance | OCIMF MEG4 tails |
Sizes and performance data available on request — configured to duty.
Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.
Jacketed winch lines and elastic tails that protect your primary mooring lines.
Round, stiff, runs cleanly over winches — far lighter than wire.
Maximum strength with very good abrasion resistance.
Mixed-fibre braid over a 12-strand load-bearing core.
Elastic shock absorption that protects primary mooring lines.
