MAX OCEAN construction

ParallelISO 18692PES · HMPE · AR cores

MAX OCEAN^™

Name: MAX OCEAN™ Deep-Water Mooring Rope
Brand: Solaris Marine

Deep-Water Mooring Rope — Parallel Construction

Deep-water mooring rope mainly used for offshore station-keeping. Produced with multi-layer technology — inner core, filtration layer and external jacket — delivering high strength, good abrasion resistance, particle-ingress resistance and excellent chemical and UV resistance. Design and manufacture are based on the specific working condition.

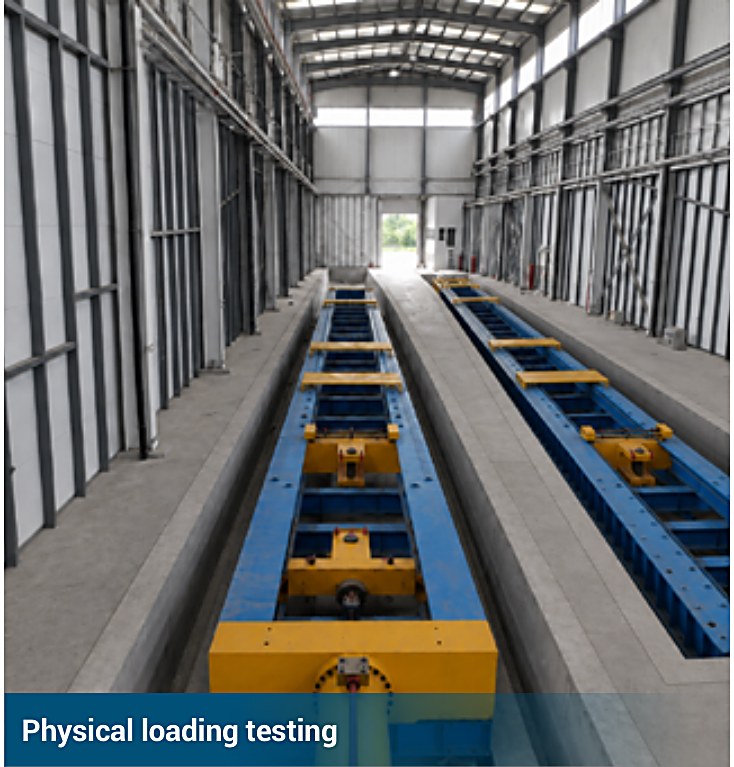

2,000 tmax spliced MBL

265 mmmax diameter

3core options

ISO 18692design standard

Request a Quote Size it in the tools Datasheet (PDF)

Technical Data

Specification

Representative properties. Core fibre and jacket are configured to the field's soil, metocean and load requirements.

Fibre & properties

Construction	Parallel, multi-layer
Core options	Polyester · HMPE · Aramid
Max spliced MBL	2,000 t
Max diameter	265 mm
Standard	ISO 18692
Abrasion resistance	Excellent

Primary applications

Station-keepingDeepwater MooringFPSOOffshore PlatformsSemi-Submersibles

Standards & approvals

ISO 18692OCIMF MEG4DNVABS

Why MAX OCEAN™? Why MAX OCEAN™? The filtration layer stops particle ingress between jacket and core — the failure mode that kills parallel mooring ropes — while class-approved fibres hold full design margins for 20+ year service.

Polyester Core

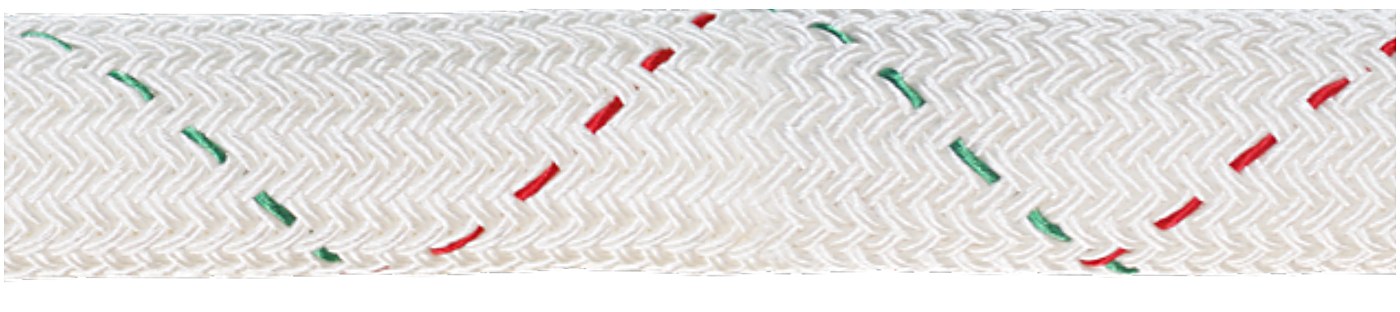

MAX OCEAN-PES™

Polyester-core parallel construction — the workhorse for catenary and semi-taut moorings where controlled elongation and outstanding fatigue life are decisive.

Fibre & properties

Core	Polyester
Construction	Parallel, multi-layer
Standard	ISO 18692

MAX OCEAN-PES™ — spliced MBL by diameter

Dia mm	Dia inch	Circ inch	Spliced MBL ton	Spliced MBL kN
106	4-1/4	13	320	3140
118	4-5/8	14-1/2	400	3920
132	5-1/4	16-3/8	500	4900
150	5-7/8	18-1/2	631	6180
160	6-1/4	19-7/8	710	6960
170	6-3/4	21	801	7850
180	7-1/8	22-3/8	901	8830
190	7-1/2	23-1/2	1001	9810
200	7-7/8	24-3/4	1122	11000
212	8-3/8	26-1/4	1255	12300
224	8-7/8	27-3/4	1398	13700
236	9-3/8	29-1/4	1602	15700
250	10	31	1806	17700
265	10-1/2	32-3/4	2000	19600

Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.

HMPE Core

MAX OCEAN-HMPE™

HMPE-core parallel construction for taut-leg and weight-critical moorings — the highest strength-to-weight option, floating and low-stretch.

Fibre & properties

Core	UHMWPE (HMPE)
Construction	Parallel, multi-layer
Standard	ISO 18692

MAX OCEAN-HMPE™ — spliced MBL by diameter

Dia mm	Dia inch	Circ inch	Spliced MBL ton	Spliced MBL kN
63	2-1/2	7-1/2	255	2500
71	2-3/4	8-1/2	327	3200
80	3-1/4	10	408	4000
90	3-5/8	11	510	5000
100	4	12	643	6300
106	4-1/4	13	724	7100
118	4-5/8	14-1/2	918	9000
132	5-1/4	16-3/8	1143	11200
150	5-7/8	18-1/2	1429	14000
160	6-1/4	19-7/8	1633	16000
170	6-3/4	21	1837	18000
180	7-1/8	22-3/8	2041	20000

Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.

Aramid Core

MAX OCEAN-AR™

Aramid-core parallel construction where heat, hardness and minimal elongation are decisive — the highest-specification option of the range.

Fibre & properties

Core	Aramid
Construction	Parallel, multi-layer
Standard	ISO 18692

MAX OCEAN-AR™ — spliced MBL by diameter

Dia mm	Dia inch	Circ inch	Spliced MBL ton	Spliced MBL kN
80	3-1/4	10	255	2500
90	3-5/8	11	316	3100
100	4	12	398	3900
106	4-1/4	13	449	4400
118	4-5/8	14-1/2	571	5600
132	5-1/4	16-3/8	714	7000
150	5-7/8	18-1/2	888	8700
160	6-1/4	19-7/8	1020	10000
170	6-3/4	21	1143	11200
180	7-1/8	22-3/8	1276	12500
190	7-1/2	23-1/2	1429	14000
200	7-7/8	24-3/4	1582	15500
212	8-3/8	26-1/4	1786	17500
224	8-7/8	27-3/4	1990	19500

Customized diameter and length available on request · Tolerance ±5% per ISO 2307 · LDBF: Line Design Break Force per OCIMF MEG4.

Range

MAX OCEAN™ core options

Three core fibres — configured to your field's soil, metocean and load requirements.

polyester core

MAX OCEAN-PES^™

Catenary & semi-taut

Controlled elongation and outstanding fatigue life.

HMPE core

MAX OCEAN-HMPE^™

Taut-leg, weight-critical

Highest strength-to-weight, floating, low stretch.

aramid core

MAX OCEAN-AR^™

Heat & hardness duty

The highest-specification core option.

MAX OCEAN^™

Specification

Fibre & properties

MAX OCEAN-PES™

Fibre & properties

MAX OCEAN-HMPE™

Fibre & properties

MAX OCEAN-AR™

Fibre & properties

MAX OCEAN™ core options

MAX OCEAN-PES^™

MAX OCEAN-HMPE^™

MAX OCEAN-AR^™
